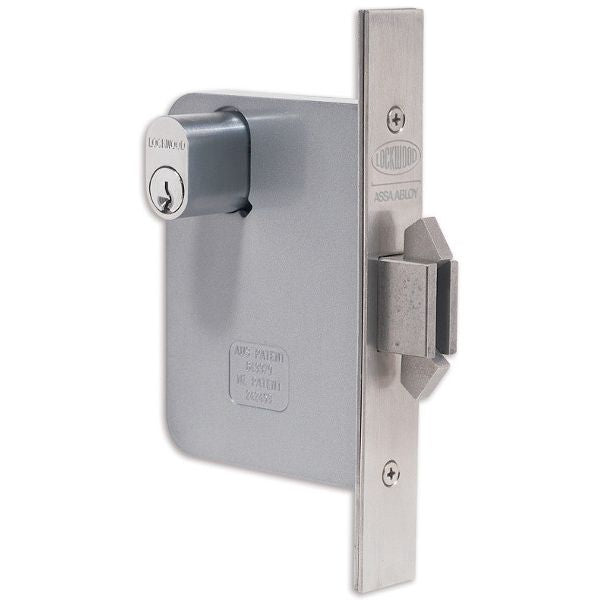

Lockwood Synergy 3573 Mortice Sliding Door Lock

Suitable for sliding doors in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels, and similar buildings.

Locked by key or turnknob when the door is closed. This lock can be easily adapted to suit function required. Compatible with all Lockwood cylinder escutcheons, turnknobs and plate furniture.

• High purity zinc alloy material cases and stainless steel cover plates
• 60 mm backset
• 19.5 mm stainless steel splay bolt
• High grade spring steel material, corrosion protected.
• Cylinder retaining pin is hard-drawn spring steel wire, corrosion protected.
• Suits door thickness 32 mm to 50 mm
• Door clearance: To ensure correct functioning of the deadlatching mechanism and security, the clearance between the door and the frame should be 3 mm.
• Cylinder: Five pin tumbler mechanism. Standard 570 oval cylinder. Functions require the use of different cams and adaptors. Extended cylinders are available for thicker doors. Cylinders are not included.
• Finish: Satin Chrome.

**Security: ** All 3570 Series Cylinder Mortice Locks conform with Level S2 (Physical Security) Australian Lock Standard (AS-4145.2-1993)

**Durability: ** All 3570 Series Cylinder Mortice Locks conform with level D3 (Durability) Australian Lock Standard (AS 4145.2- 1993)

**Fire Rating: ** Lockwood 3570 Series Mortice Locks have been successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
