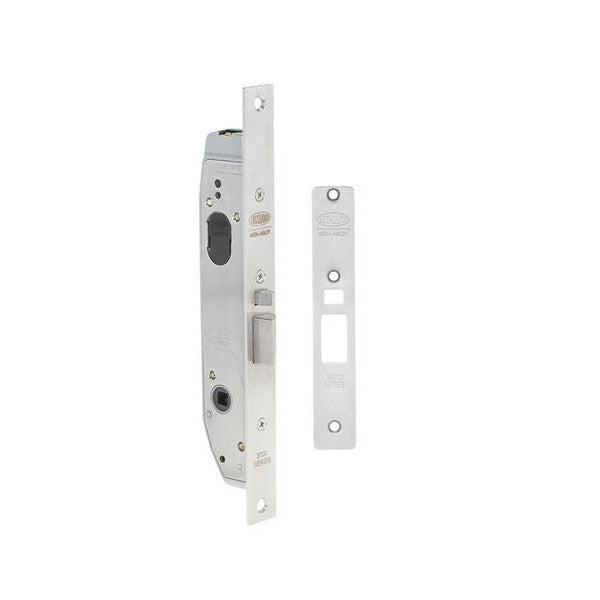

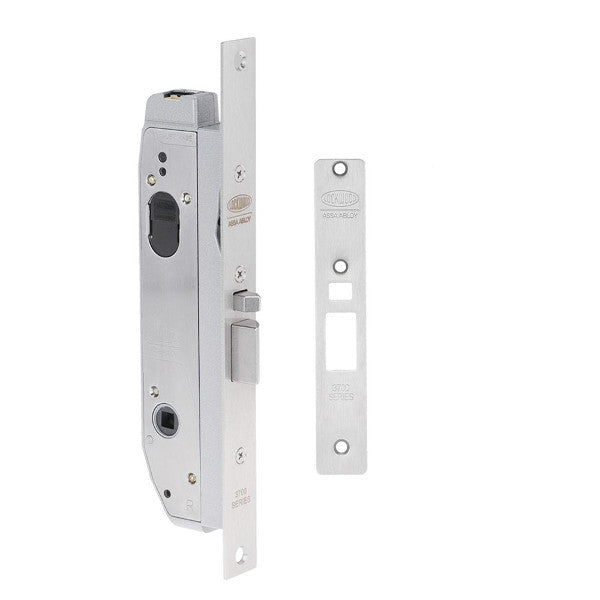

Designed and manufactured in Australia the Selector 3782EL is a high performance electric mortice lock for narrow stile hinged doors. Designed to meet the varying requirements of commercial applications, the lock is the ideal complement to high security access control systems and a great locking product to use with intercoms, keypads and key switches due to the intuitive operation of a locked or unlocked handle. These locks comply with building regulations for single action escape doors.
The 3782EL is a fully field configurable primary electric mortice lock providing significant benefit over previous models. The unique motor driven operation, high security monitoring capabilities and on board door status LEDs provides a significant advancement in the specification, distribution, installation and servicing of electric mortice locks.
Monitoring = Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO / NC) and Lock Status (NC) – all 30 V DC 50 mA MAX
Environment = -15 to 60 ºC
Case / Cover = High purity zinc alloy material cases with stainless steel chassis plates
Cabling = Supplied with 3.6 M cable with 12 pin connector and water deflecting boot
Recommended cabling = 8AWG (0.82 mm²) cable runs up to 30 M
Latch Bolts:
- Latch bolts are made with stainless steel, 15 mm in size
- Deadlatching is achieved by an auxiliary stainless steel latch bolt
- Reversible for both left and right hand doors, opening in or opening out whilst lock is in door
- Separate auxiliary bolt moves into lock case simultaneously with latch bolt
- Radius bolt provides greater deadlatch throw and smoother closing action
Cylinder Retaining Pin = Hard-drawn spring steel wire, corrosion protected.
Door Thickness:
- Metal doors: 35 to 50 mm
- Timber doors: 32 to 50 mm
Door Clearance = To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3 mm.
Security = Conforms with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.
Durability = Conforms with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).
Anti-Corrosion = Conforms with Level C6 (168 hours) Australian Standard (AS4145.2-2008).
Finish = Stainless Steel SS
Standards and Compliance:
- S8 (Security) Australian Lock Standard (AS4145.2.2008)
- D8 (Durability) Australian Lock Standard (AS4145.2.2008)
- C-Tick Certified Current
- 300 mA MAX (20 mA continuous if LEDs are activated)
Compatible with Lockwood 4800 and 5800 Series Brass Door Furniture . This includes function 11 (cylinder, lever and lens) and function 12 (lever and lens) which are specifically designed to work with this lock to allow the onboard LEDs to illuminate door status.
Standard Lockwood oval shaped cylinders can provide mechanical key override. Key retracts bolt when used with either X7 cam or V cam. Locks are supplied with X7 cams included.
- 23 mm, 30 mm, or 38 mm backset
- Variable voltage from 9 – 28 V DC
- Simple in field selection of power to lock (fail secure) or open (fail safe)
- Full range of monitoring including Request to Exit (REX), Deadlatch, Door position, Key Override Monitoring (KOM) and locked status
- On board door status LEDs improves installation and reliability
- Unique functions for reader in / out applications which allows external side to fail securely while internal side fails safe allowing free egress
- Motor driven providing lower power usage in power to lock applications
- 3 wire control means the power can be supplied independent to the locking control signal making the lock less susceptible to issues associated with voltage drop across long wiring runs
- Supplied with short and long forend plates
