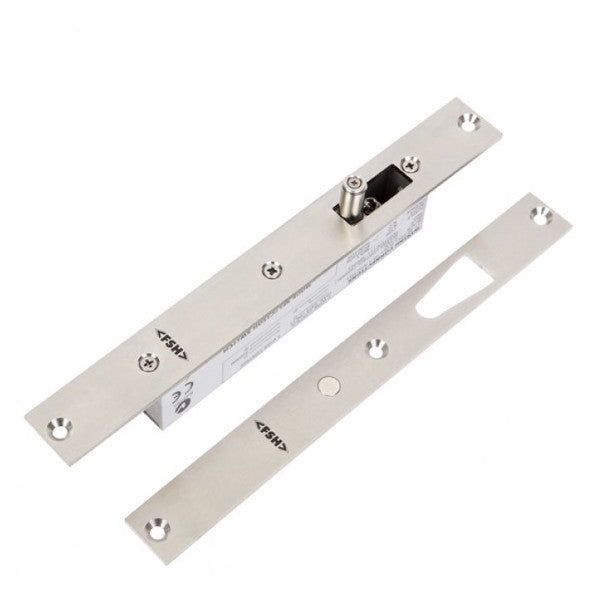

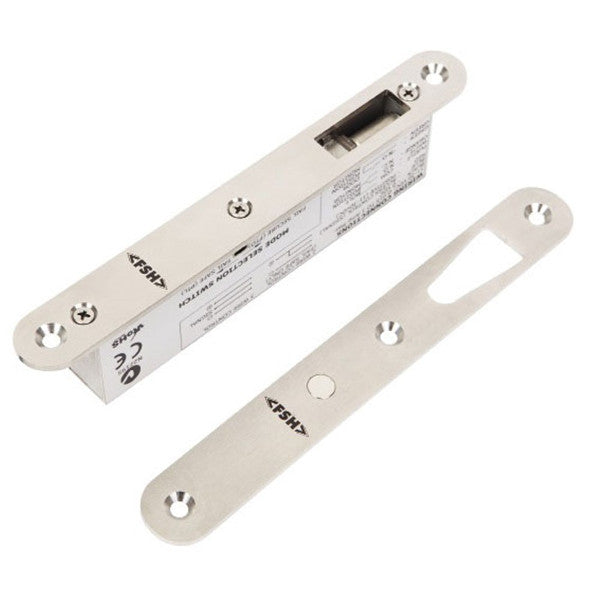

FSH Pre-Load Drop Bolt
The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35 kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180° degree swing through doors.
The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35 kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180° degree swing through doors.
The VE1260 is considered a “Green Product” as it consumes an inrush current of 290 mA @ 12 V DC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than 15 mA @ 12 V DC.
A series of additional Strike Plates allow for door misalignment of up to +12 mm and a retro fit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.
- Holding strength = Up to 1,000 kg
- Voltage/Current: = Multi voltage 12-30 V DC
- Active Mode: Locking/Unlocking cycle current is 0.29 A to 0.85 A depending on the side load
- Sleep Mode: After locking/unlocking the current drops down to -0.015 A (15 mA)
