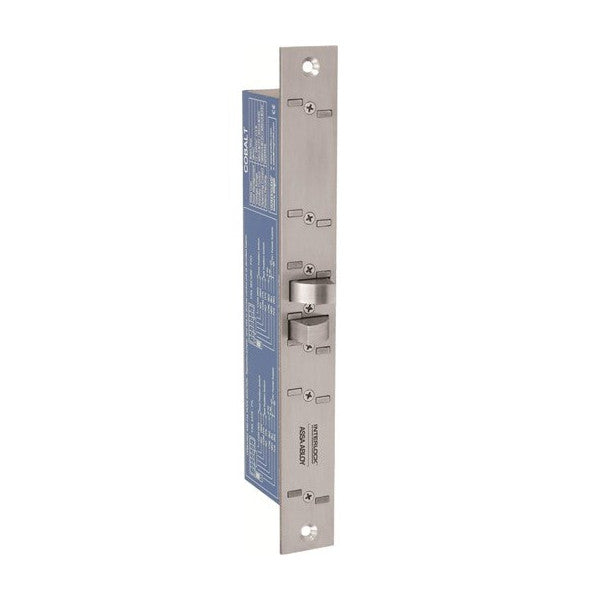

Cobalt Double Action Electronic Side Load Lock

The COBALT DA electronic side load lock is a motor driven electronic lock designed to secure commercial and residential double acting doors. The lock addresses the two biggest issues in door locking; the ability to align a misaligned door and the ability to release when requested, even with excessive load on the door. Reliable, secure, convenient; the COBALT has arrived.

Door Alignment:

Door misalignment of up to 8 mm is corrected

Side Load Release:

The door can have in excess of 100 kg being applied and it will still release instantly when requested

High Security:

• Automatic deadbolting
• 10,000 N holding force (1,000 kg)
• Two, 10 mm thick stainless steel bolt pins

Electronic Convenience:

• Input voltage from 12 V DC – 24 V DC
• Less than 50 mA standby current
• Reverse polarity and transient protection
• Multiple attempts to lock

Simple Configuration:

Convert from Fail Safe to Fail Secure by repositioning a single jumper

Dual Monitoring:

Door and bolt position monitors

Versatile Installation:

• Mortice mount horizontally or vertically, on double acting doors
• Surface mount with the aid of the accessories, including mounting onto glass

Physical dimensions:

255 mm (L) x 30 mm (W) x 51 mm (D)
